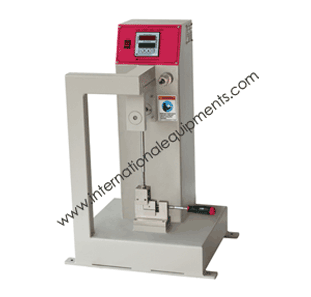

Impact Tester ( Izod / Charpy )

Universal Testing Machine to determine properties of tensile and elongation as per ASTM D – 638/ D 882, flexural as per ASTM D - 790 and compression as per ASTM D – 695 of unreinforced and reinforced plastics.

• Capacity : Up to 25.00 Joules.
• Release angle of pendulum : 150 degree.
• Range of four scales : 0-2.71 Joules, 0-5.42 Joules, 0-10.84 Joules, 0-21.68 Joules and 0-25.00 Joules.
• Minimum resolution on scale : 0.02 Joule, 0.05 Joule, 0.1 Joule, 0.2 Joule and 0.2 Joule respectively.
• Paint : Powder coated.
• Power : 230 Volts, 50Hz, single phase.

Direct display and printout through microcontroller :
Numeric test report consisting values of Peak load, Break load, Elongation at peak load, Elongation at break load, Tensile strength at peak load, Tensile strength at break load, % elongation at peak load, % elongation at break load could be viewed on the micro controller and printout could be obtained by directly attaching a dot matrix printer to the equipment.

Graphic display and printout through PC :
In addition to the above reports, further values like Young’s modulus, Yield load, Yield stress, Flexural stress, Flexural modulus and Load Vs Elongation graph could be obtained by attaching a printer to the PC. Similarly average value and standard deviation could be obtained by merging different tests.

As per ASTM D - 256 to test impact resistance of plastics. The test indicates the energy required to break standard test specimen.

Specification :
Capacity : Up to 21.68 Joules.
Release angle of pendulum : 150 degree.
Range of four scales : 0-2.71 Joules, 0-5.42 Joules, 0-10.84 Joules and 0-21.68 Joules.
Minimum resolution on scale : 0.02 Joule, 0.05 Joule, 0.1 Joule and 0.2 Joule respectively.
Paint : Powder coated.
